Overview
Models 425 | 520 | 620
It started with the engine; Cummins, the exclusive engine supplier to Versatile, outlined the path to achieving iT4 emission standards. Work began on a new cab and operator environment, focusing on visibility and operator comfort and convenience. Caterpillar would provide a full range of Powershift transmissions. New styling would improve visibility and become a design model for future Versatile tractors. And it had to maintain the reputation that Versatile four-wheel drives have carried since 1966.
The result is a new Versatile four-wheel drive designed to enhance the profitability of large scale farming operations and compete with the best in the world, while upholding the Versatile cornerstones of reliability, durability and ease of service and maintenance.
Engine
QSM11 395-425hp
The Cummins QSM11 powers the 395 and 425 models. The 11-litre six-cylinder turbocharged engine delivers superior performance using advanced combustion technology.The turbocharger is designed foroptimum boost to improve throttle response across the operatingrange. Electronically across the operating range. Electronically controlled unit injectors with cam-driven rate shaping optimize both emissions and efficiency. The mix of proven field performance and advanced technology is designed to be durable and reliable.
QSX15 460-620hp
The HHT Series (460, 520, 570, 620 hp) is powered by the dependable Cummins QSX 15-litre six-cylinder turbocharged engine. Versatile selected the Cummins QSX15 during the development of the HHT Series to optimize the performance of the tractor, shaping power curves and ratings to align with work environment, load factors and operating modes. The result is an efficient and reliable high horsepower tractor that will work hard for years to come.
Bigger Radiator, Better Cooling
The cooling systems on Versatile four-wheel drive tractors uses a large grille and radiator to provide better air velocity required for engine cooling, which results in more efficient fan horsepower consumption
Transmittion
The entire line of Versatile four-wheel drive tractors now feature 16 x 4 CAT Powershift transmissions. The 395, 425 and 460 models use the TA19. The Versatile 500 and 550 feature the TA22. The smooth shifting dependable CAT transmission offer 40 km/hr road speeds and a large selection of working range gears for every application. Both transmissions are programmable for auto shifting and speed matching.
The mechanical 12 x 4 transmission features four synchronized sequential smooth-shifting gears in each of its three ranges. These gears have closely matched speed increments in the critical band from 3-8 mph (5-13 km/hr) to provide flexibility for every farming application.
The entire line of Versatile four-wheel drive tractors now feature 16 x 4 CAT® Powershift transmissions. The 350, 375, and 400 models use the TA19. The Versatile 500 and 550 feature the TA22. The model 450 is available with a choice of either the TA19 and the TA22.
The smooth shifting dependable CAT® transmissions offer 25 mph (40 km/hr) road speeds and a large selection of working range gears for every application. Both transmissions are programmable for auto-shifting and speed matching.
Hydraulics
Standard flow of 200 L/min
Optional High Flow of 400 L/min with split valve functionality
Increased reservoir capacity
Reservoir sight glass
The closed centre load sensing hydraulic system provides ample capacity for implements that demand high hydraulic flow by providing pressure and flow on demand. When nohydraulic power is required, the system goes into low-pressure standby to conserve energy, providing more power at the drawbar.
Hydraulic Flow
A total hydraulic flow of 53 GPM (201 L/min) is standard, or 106 GPM (401 L/min) with the optional high flow hydraulic system. Four remote valves are standard, six optional.
Electro-Hydraulics
Optional electro-hydraulics, available on all models, are ergonomically designed for both comfort and convenience. Finger-tip controls manage the hydraulic functions and hydraulic flow is increased and decreased using the EHR monitor.
Cabin
The Versatile four-wheel drives offer the largest cab in the industry. The cab interior is 20% larger than previous models and offers 85.9 sq. ft. (7.98 sq. m) of window glass an increase of 14% from previous models. The new cab and hood design also increase forward visibility by 35% over the last generation. Additional standard cab features include; a front and rear intermittent wiper/washer system, front and rear sun visors, four 12-volt outlets, four cup holders, and multi-directional vents.
Deluxe Cab
The Deluxe Cab is a high-end full-featured cab that provides the operator with every imaginable comfort for long working days. A semi-active air-ride suspension seat and the training seat are both standard in this configuration. In addition to the connectivity options available in the standard cab, the Deluxe Cab has an 110v AC power outlet and a 5-volt integrated USB port. A subwoofer is also standard to improve sound quality in the cab

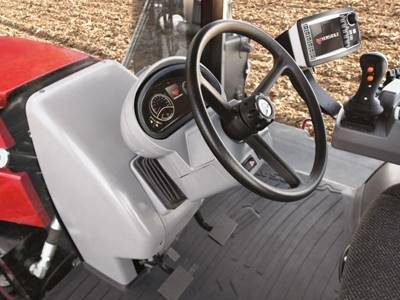

Dash Console
The redesigned dash console is narrower than previous versions to increase forward visibility. The steering console has standard tilt and telescopic operation to provide additional operator comfort. A newly designed dash display simplifies information for improved readability.
Operator Seat
The operator seat has a 104° swivel range to maximize visibility when towing implements. Air ride suspension and a heated seat are standard in the Deluxe Cab.
Training Seat
A comfortable training seat is available as an option and is standard in the Deluxe Cab. The seat has storage underneath and folds down to hold a laptop.
Vents
Large multi-directional vents optimize comfort and help create an ideal cab environment.
Radio
A conveniently located stereo and high quality sound system help make long days in the cab more enjoyable.
Convenience
Four cup holders are standard. The cab has coat hooks to keep the cab clean and organised.
4WD 425 | 520 |620 SPECIFICATIONS |
|||
MODEL | 425 | 520 | 620 |
ENGINE | Cummins QSM Turbo Diesel Peak HP @1800 rpm Max 425hp |
Cummins QSX 15 Tier3 Turbo Diesel VE 520 | Peak 520 HP @ 1800 rpm VE 620 | Peak 620 HP @ 1800 rpm |
|
POWERSHIFT TRANSMISSION |
Caterpillar TA19 full powershift 40km/hr Forward / Reverse Power Shuttle Up to 6th Gear Start Up |
Caterpillar TA22 full powershift 40km/hr Forward / Reverse Power Shuttle Auto Shift, Shuttle, Pulse or Sequential Shift |
|
AXLES & STEERING | Articulated type Hydrostatic Steering Tilting, Telescopic Steering Wheel |
||
BRAKES | Hydraulic Self Adjusting Disc Brakes Hand Operated Park Brake |
||
OPERATORS ENVIROMENT |
Deluxe Cab Package Largest cab in the industry Leather seat Semi Active Heated Air Suspension Comfort Seat R/H control console moves with seat Training Seat |
||
WEIGHTS & DIMENSIONS |
Length without Weights – 6750 mm Overall Height – 3720 mm Max Operating Weight – 17010 kg Fuel Capacity – 1135 Litres |
Length without Weights – 7630 mm Overall Height – 3940 mm Max Operating Weight – 19731 to 24948 kg Fuel Capacity – 1514 Litres |
|
STANDARD TYRES |
710/70R42 Drum Style Duals | 800/70R38 Drum Style Duals | |
WARRANTY | 2 years or Max 2000 hours from Installation Plus extra 3rd year on Transmission |
